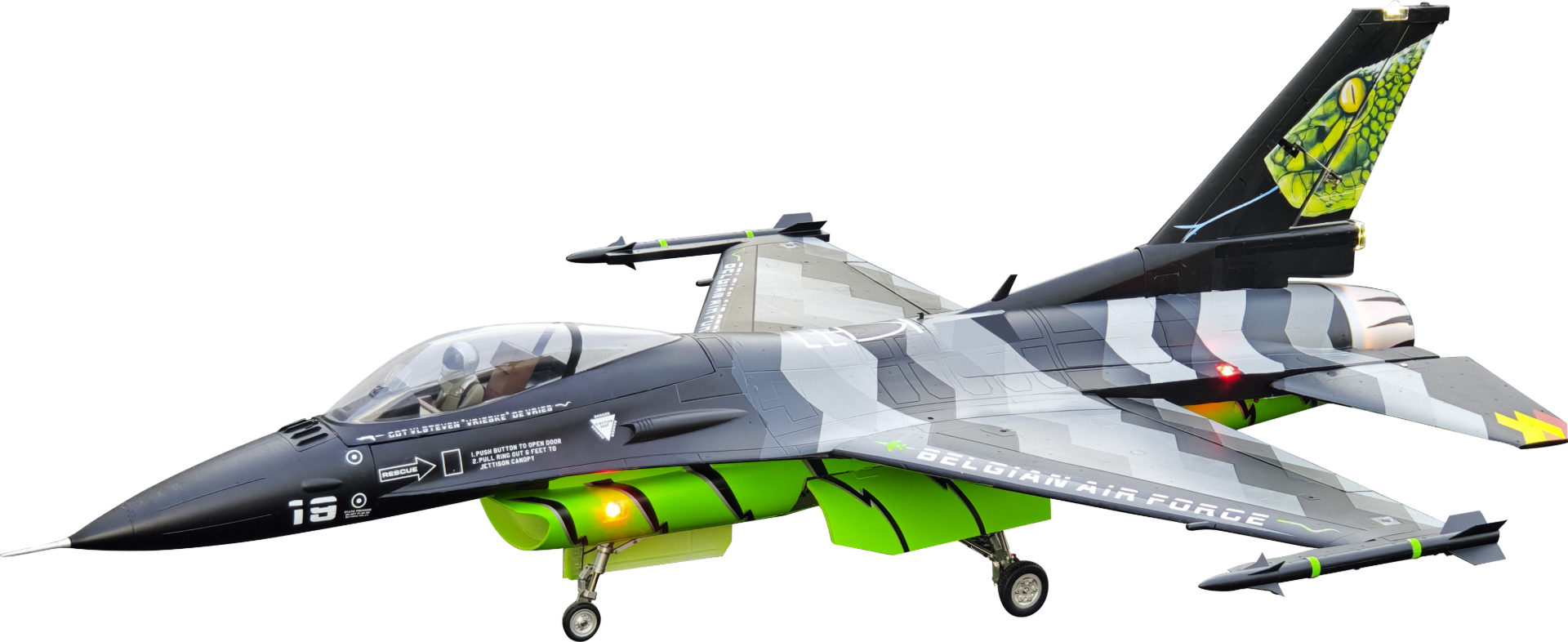

    HF-16 S-EDF 105mm Dream Viper PNP

    The HSD HF-16 Dream Viper 105mm EDF jet combines 12S electric power with F-16 scale detail. Equipped with an MFC-2085 control system, LED afterburner effect, metal retracts, and electromagnetic brakes, this PNP aircraft is designed for advanced RC pilots. Transmitter, receiver, batteries, and charger are required separately.
    SKU: HF16-AIR-020-EDF-DV
    $1,429.99
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    HSD JETS   /   105MM S-EDF

    Presence in every detail.
    Performance in every system.

    The HF-16 Dream Viper blends a striking F-16-inspired silhouette with a 12S electric power system, integrated aircraft electronics, and the mechanical detail expected of a premium EDF platform.

    HF-16 DREAM VIPER   •   PNP

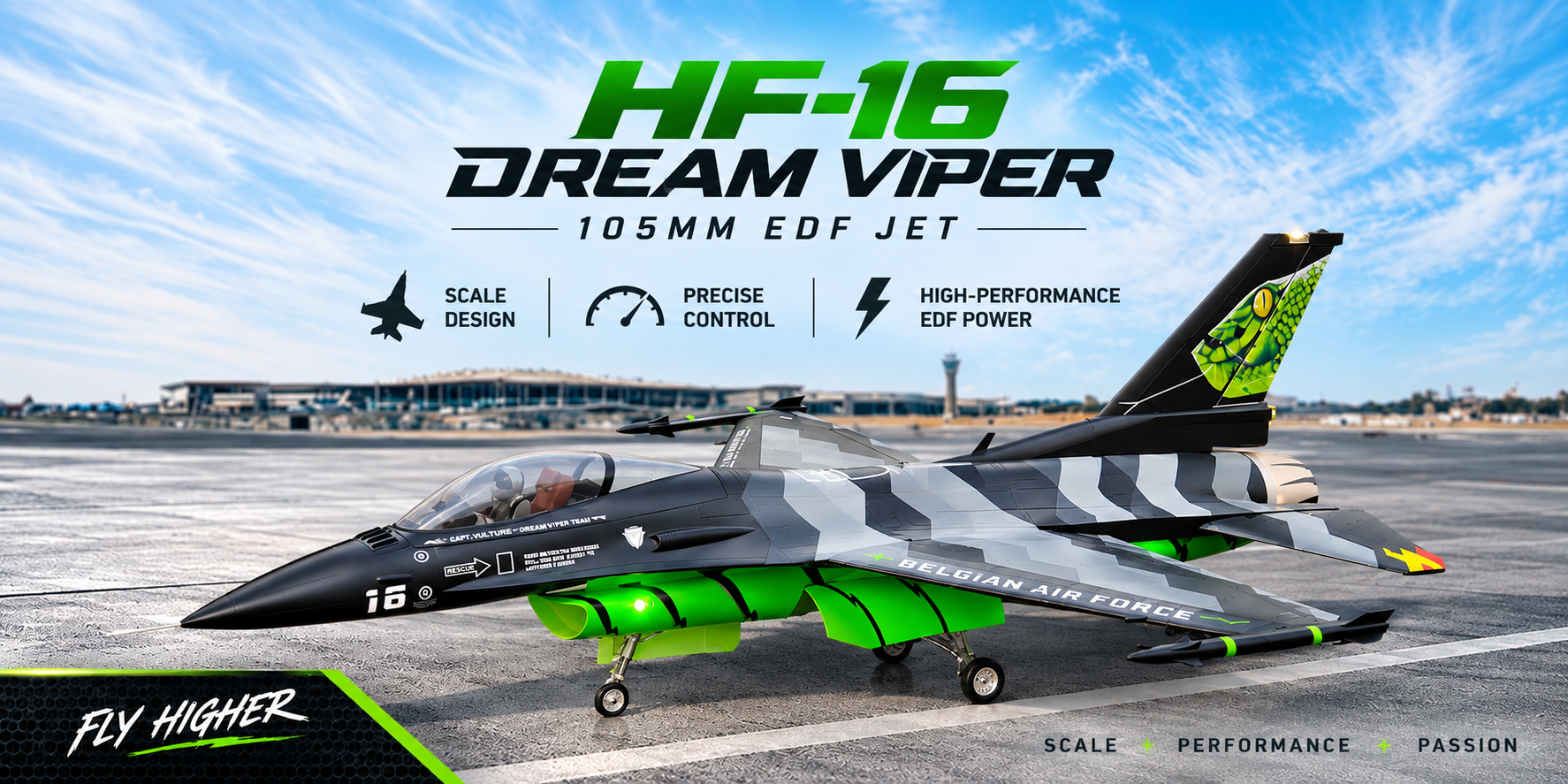

    Complete HSD HF-16 Dream Viper 105mm EDF aircraft ENGINEERED FOR FLIGHT
    105mm 11-blade S-EDF
    12S Electric power
    160A Hobbywing HV ESC
    MFC-2085 Integrated control
    THE HF-16 PLATFORM

    An aircraft designed to make an impression.

    The Dream Viper brings the power system, landing gear, electronics, and scale details together in one advanced PNP aircraft. Explore the systems behind the experience.

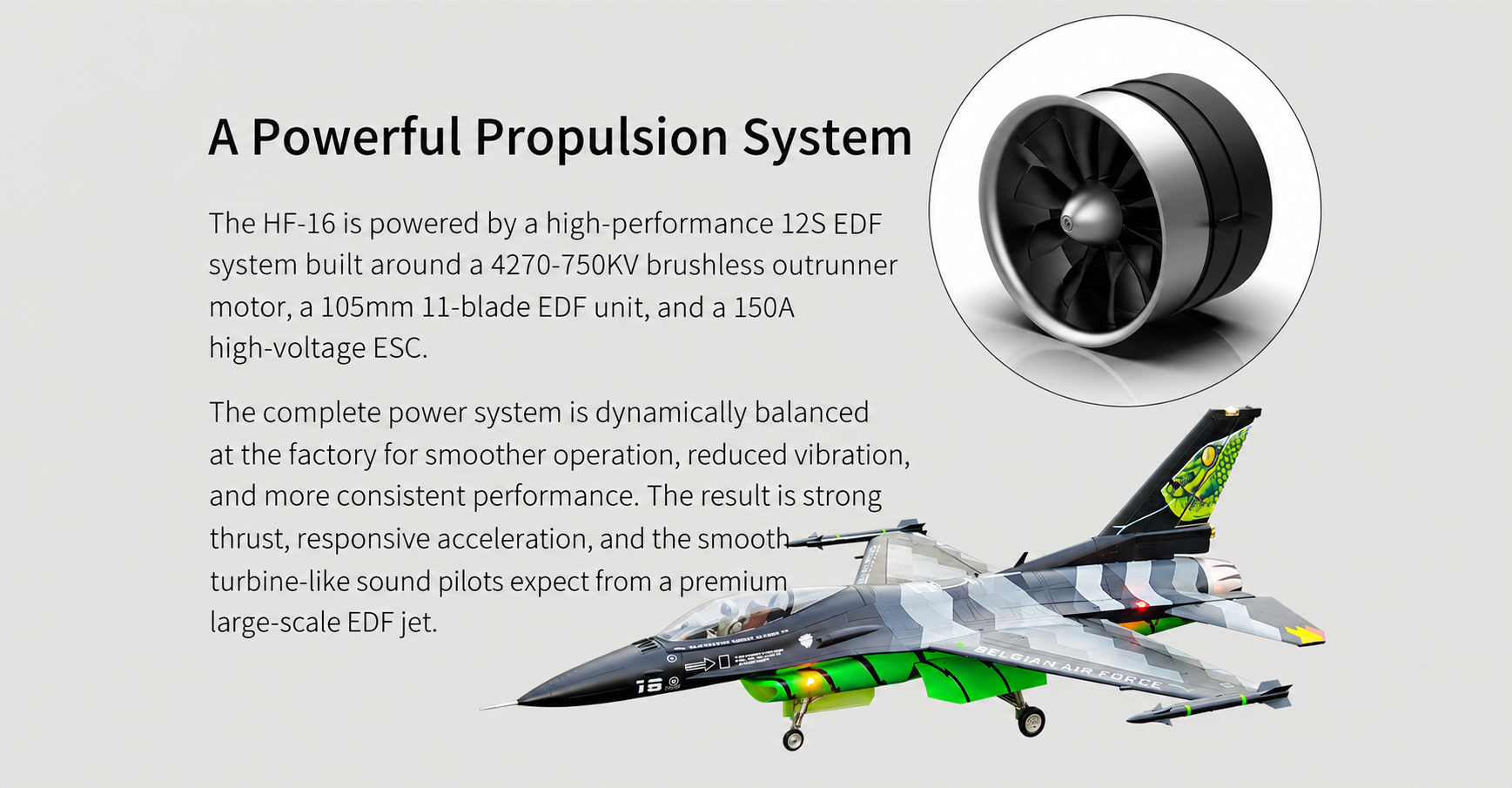

    HSD HF-16 105mm EDF power system
    01   /   PROPULSION

    12S power.
    Turbine-inspired sound.

    A 105mm 11-blade S-EDF, 4270-750KV brushless motor, and Hobbywing 160A high-voltage ESC form the HF-16's propulsion system. Two 6S flight batteries connect in series for 12S operation.

    105mm S-EDF 4270-750KV 160A ESC

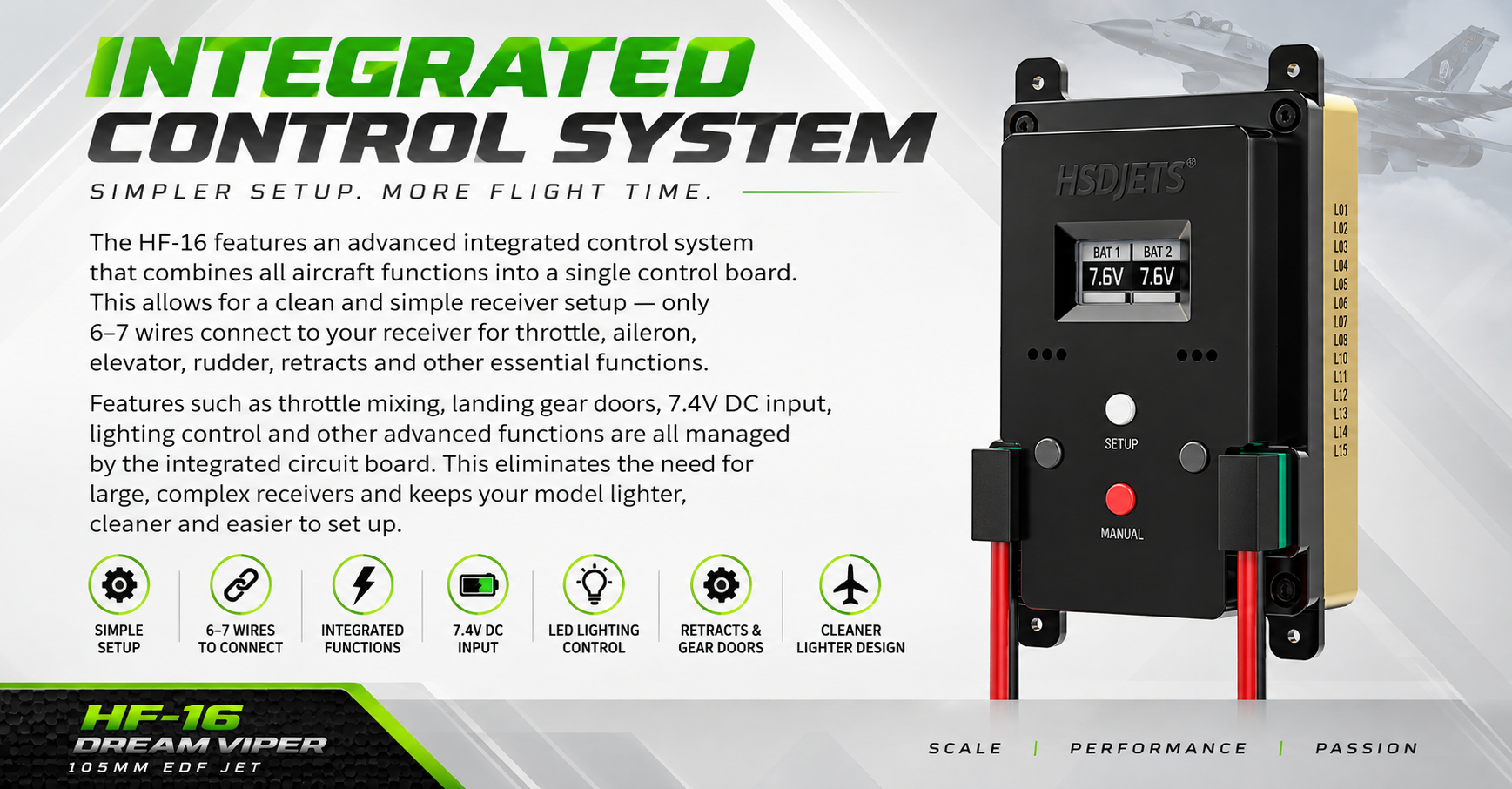

    HSD MFC-2085 integrated control electronics
    02   /   SYSTEMS INTEGRATION

    Complex capability.
    Thoughtful integration.

    The HSD MFC-2085 brings receiver connections and auxiliary aircraft functions into a centralized installation. It helps organize control wiring and coordinate gear doors, retracts, lighting, and braking functions.

    Supported receiver connections depend on the installed MFC-2085 version. Confirm compatibility with your radio setup.

    MFC-2085 Centralized wiring
    03   /   PRECISION HARDWARE

    Engineered for the runway.

    The detail extends beneath the airframe, where landing loads and rollout control demand purpose-built hardware.

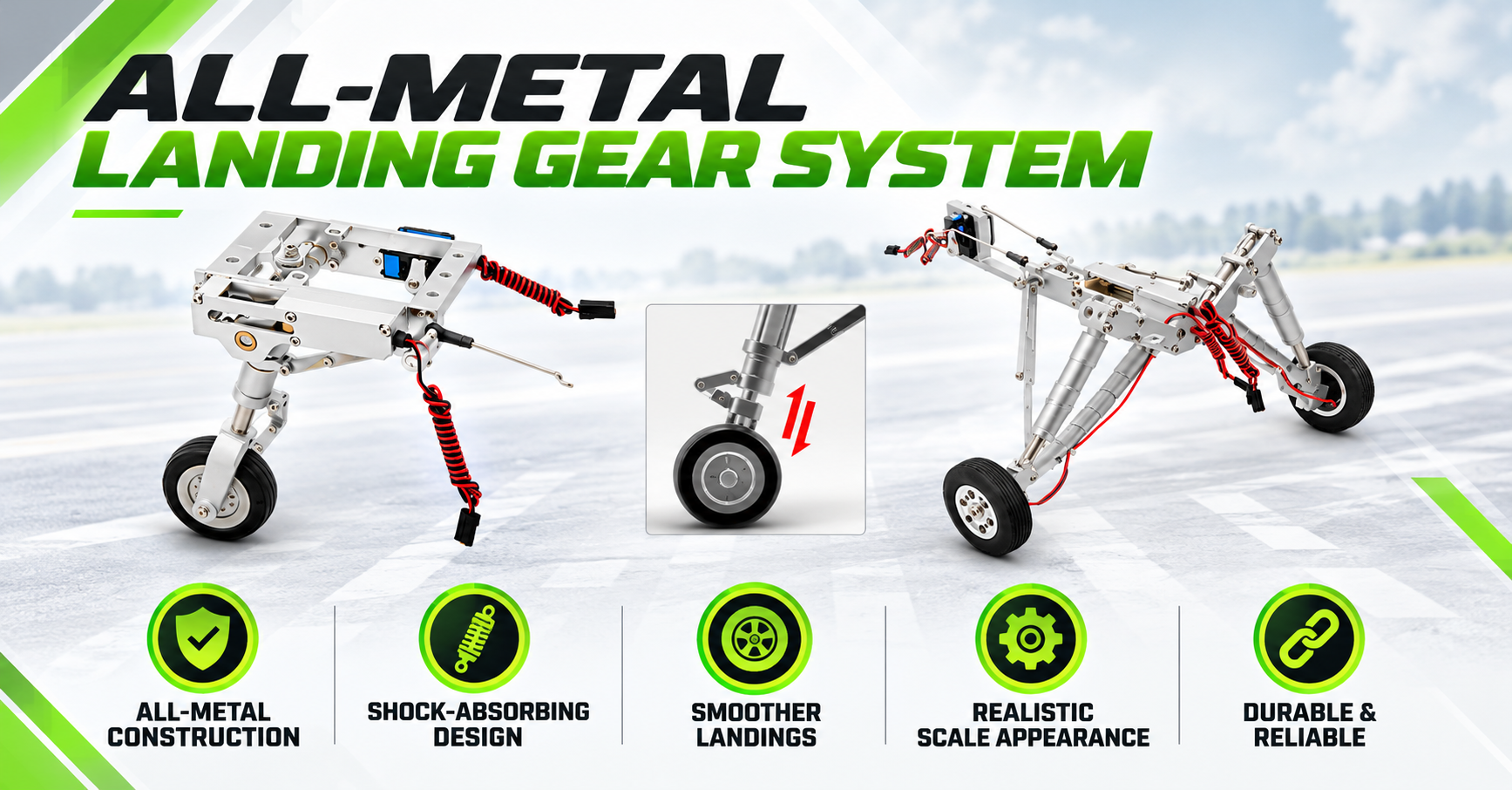

    All-metal electric landing gear and shock-absorbing struts on the HF-16
    01 / LANDING GEAR

    All-metal retracts.

    Electric retracts and shock-absorbing struts help manage landing loads, with bearing-supported wheels for smoother ground handling.

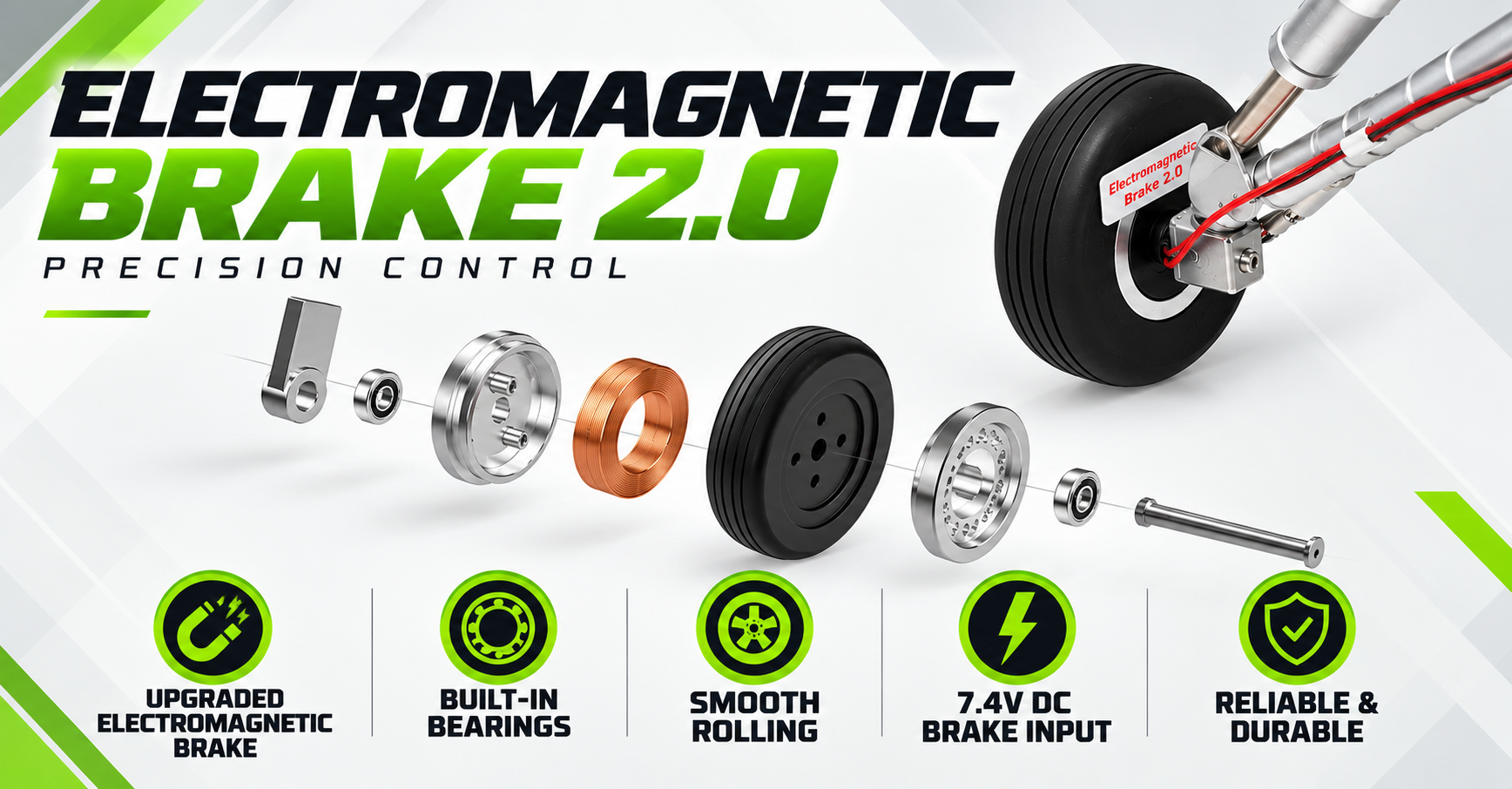

    HSD HF-16 electromagnetic wheel brake assembly
    02 / ROLLOUT CONTROL

    Electromagnetic braking.

    Integrated wheel brakes provide controlled deceleration during landing rollout.

    04   /   SCALE PRESENCE

    A commanding silhouette.
    Details that bring it to life.

    The Dream Viper's distinctive matte-painted finish is complemented by factory-installed LED lighting and a throttle-responsive afterburner lighting effect.

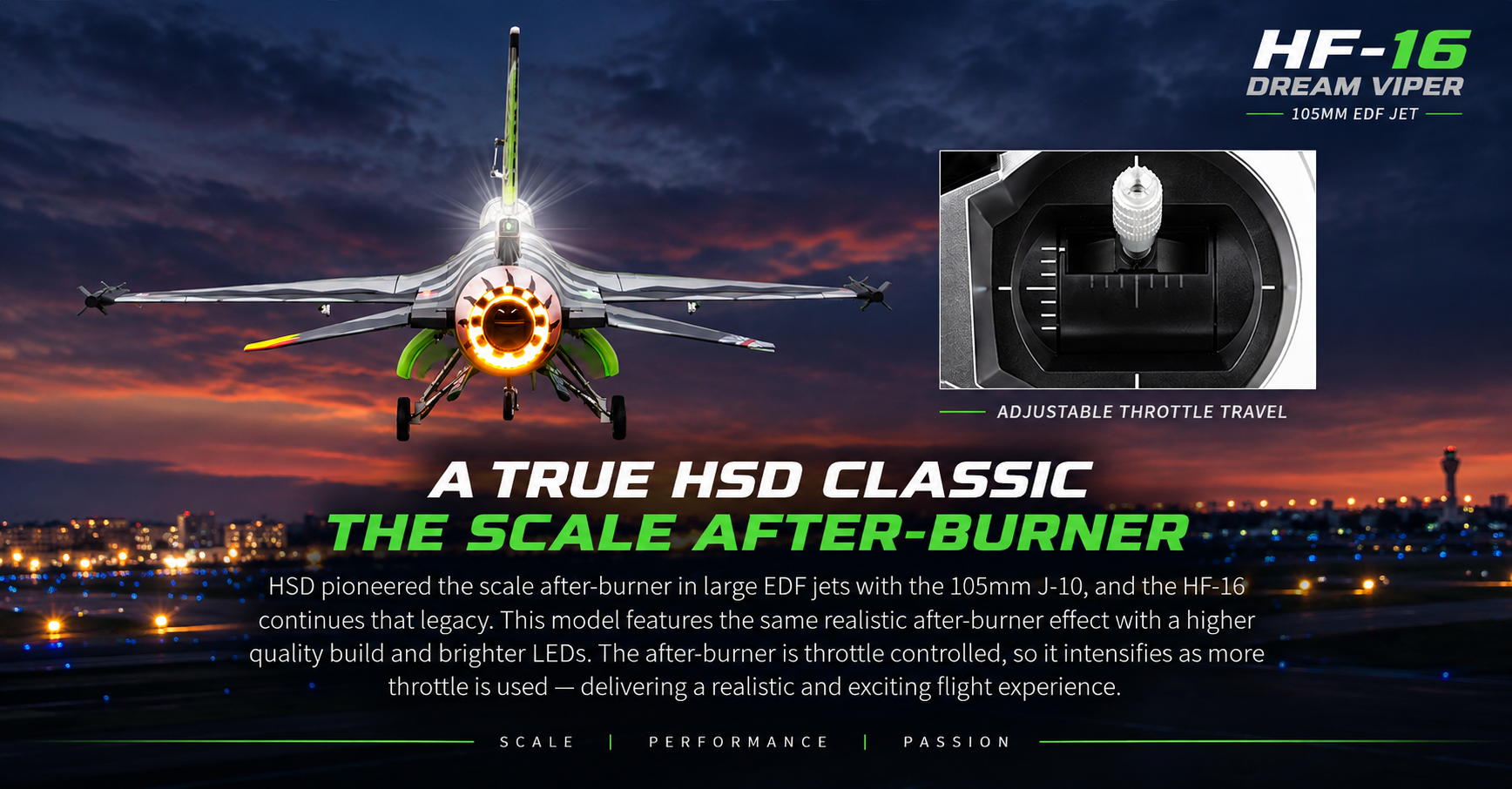

    Throttle-responsive HF-16 afterburner lighting effect
    Throttle-responsive afterburner

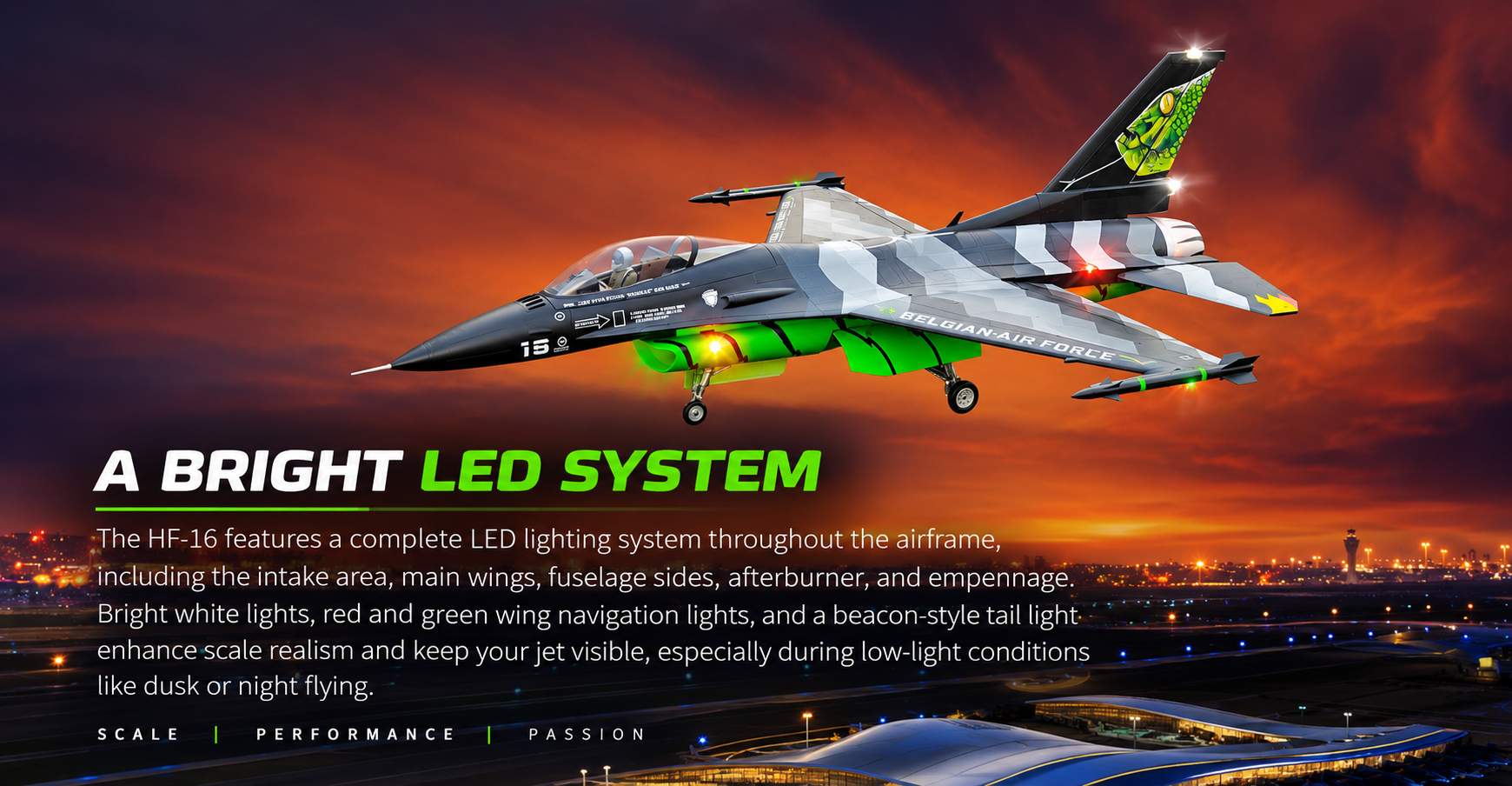

    HSD HF-16 factory-installed LED lighting system
    Factory-installed LED lighting
    05   /   AIRFRAME & ASSEMBLY

    Built with purpose. Prepared for the field.

    Structural reinforcement, integrated connections, and installed control hardware help make the HF-16 a complete PNP platform.

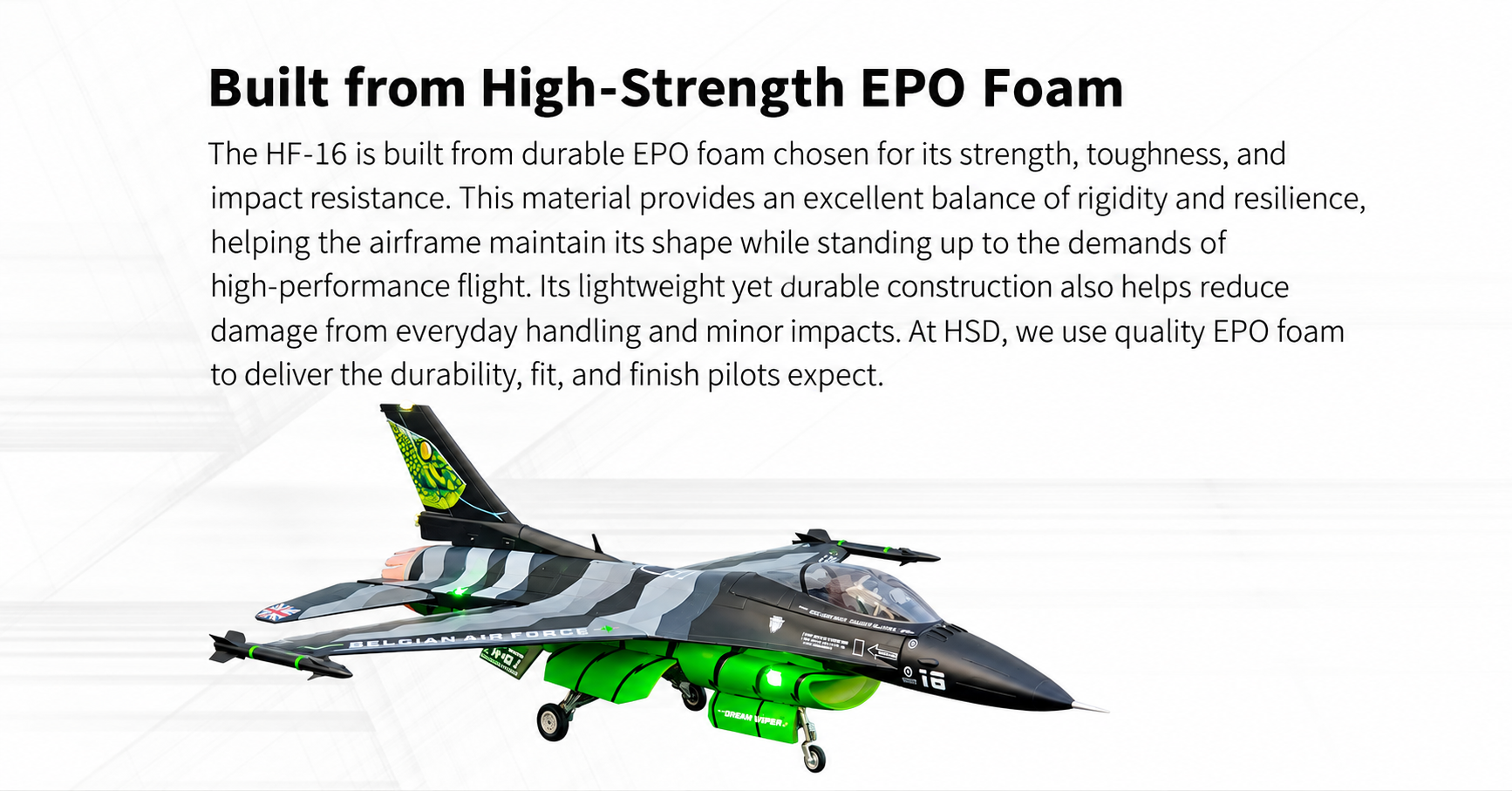

    Carbon-fiber-reinforced EPO construction of the HF-16

    Reinforced EPO

    Carbon-fiber reinforcement supports the airframe's EPO construction.

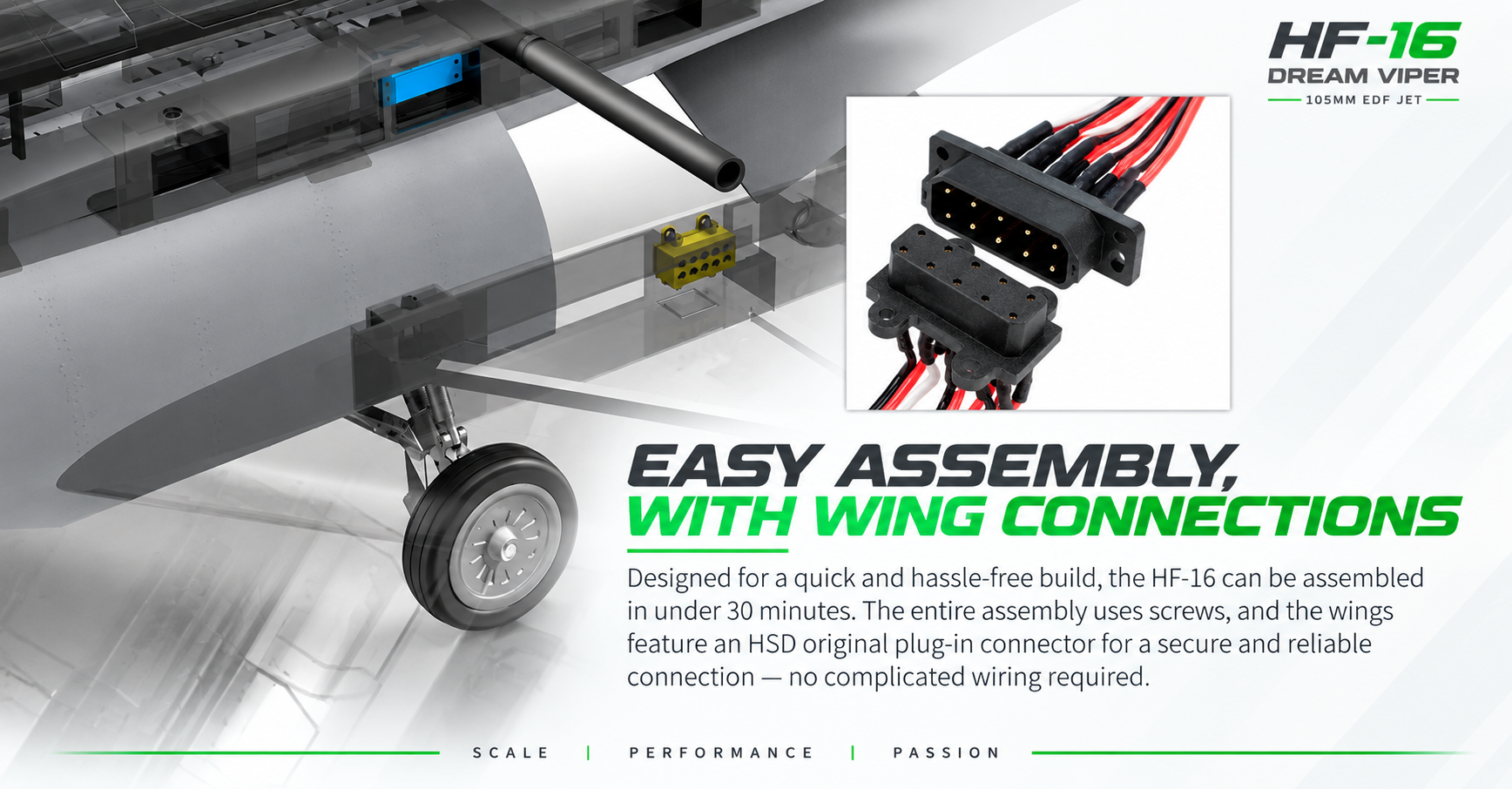

    HF-16 quick assembly and plug-in wing electrical connections

    Practical assembly

    Screw-fastened major components and plug-in wing electrical connectors simplify field preparation.

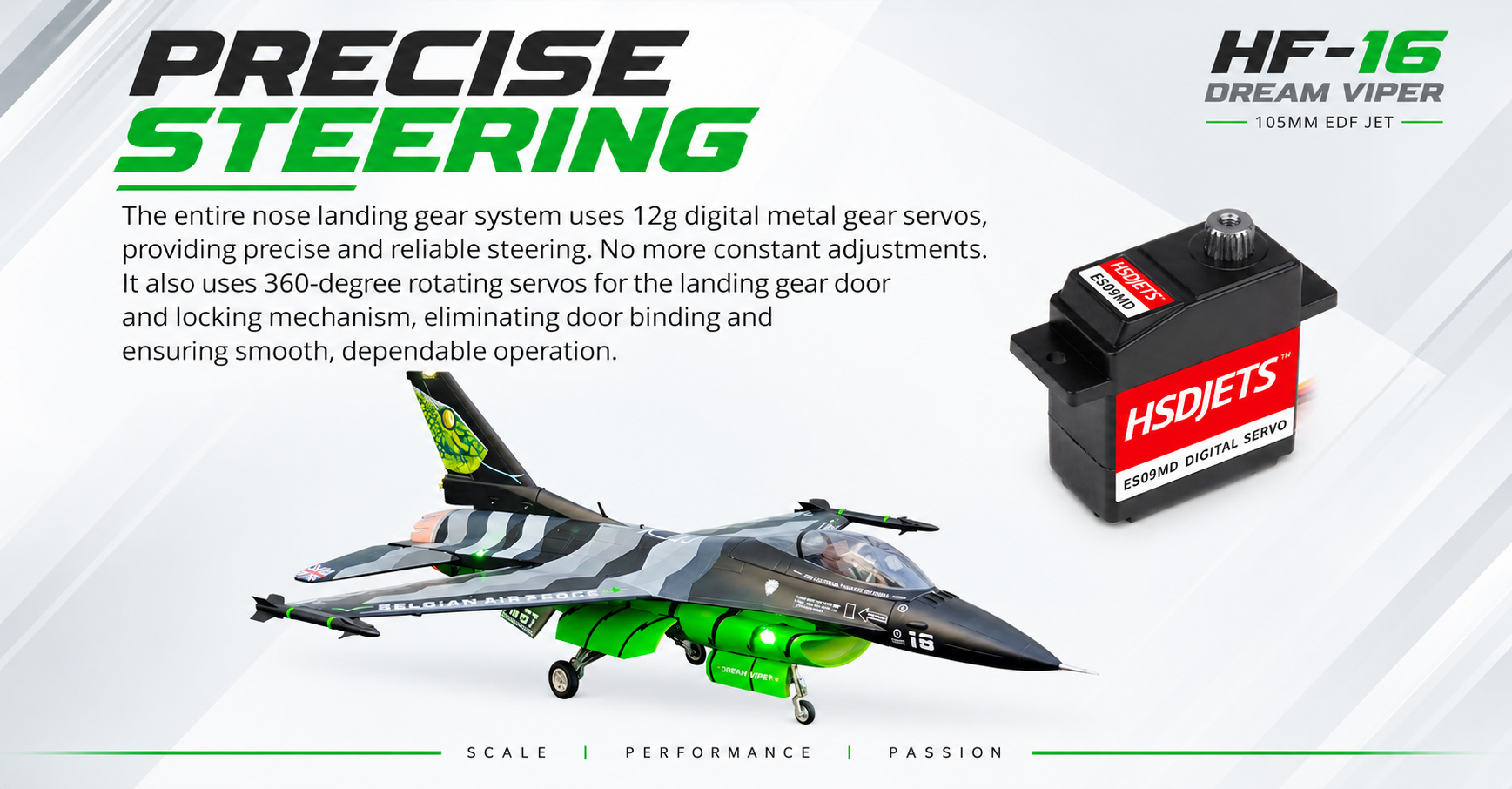

    Installed metal-gear servo system in the HF-16

    12 installed servos

    Metal-gear servos support flight controls and auxiliary aircraft functions.

    READY FOR THE NEXT LEVEL?

    For experienced EDF pilots.

    The HF-16 is intended for advanced pilots and is not suitable as a first EDF jet. The PNP version requires a compatible transmitter and receiver, flight batteries, separate MFC power battery, charger, final assembly, programming, and thorough preflight checks. See the Specifications and Included & Required tabs for details.

    HF-16 DREAM VIPER TECHNICAL REFERENCE

    Aircraft Specifications

    Detailed airframe, propulsion and onboard system information for the HF-16 S-EDF 105mm Dream Viper PNP.

    1,245 mm Wingspan
    1,809 mm Length
    6.1 kg Approx. flying weight
    12S Electric power system
    01 / TECHNICAL DATA

    Airframe & dimensions

    AircraftHF-16 Dream Viper
    ConfigurationPNP (Plug-N-Play)
    Product SKUHF16-AIR-003-EDF-DV
    Wingspan1,245 mm / 49 in
    Overall length1,809 mm / 71.2 in
    Approximate flying weight6.1 kg / 13.4 lb with 12S flight batteries
    Airframe constructionEPO foam with carbon-fiber reinforcement
    Recommended pilot experienceAdvanced EDF pilot
    02 / TECHNICAL DATA

    Propulsion & electrical power

    Ducted fan105 mm, 11-blade S-EDF
    Motor4270-750KV brushless
    Electronic speed controllerHobbywing 160A high-voltage ESC
    Flight power system12S LiPo (two 6S batteries connected in series)
    Main ESC connectorsAS150
    03 / TECHNICAL DATA

    Control & onboard electronics

    Integrated control systemHSD MFC-2085
    Installed servos12 metal-gear servos
    Servo distribution4 × 25g + 8 × 12g
    System functionsCentralized connections for flight controls and auxiliary systems
    Radio compatibilityDepends on installed MFC-2085 version and supported receiver protocol
    04 / TECHNICAL DATA

    Landing gear, lighting & assembly

    Landing gearAll-metal electric retracts
    StrutsShock-absorbing
    WheelsBearing-supported
    Wheel brakingElectromagnetic brakes
    LightingFactory-installed LED system
    Afterburner effectThrottle-responsive lighting
    Wing installationScrew-fastened assembly with plug-in electrical connectors
    Configuration notes

    Flying weight is approximate and varies with batteries and installed equipment. Confirm your MFC-2085 version, receiver compatibility and electrical connections before setup. Transmitter, receiver, batteries and charger are not included with this PNP aircraft; see the Included & Required tab for details.

    HF-16 DREAM VIPER PNP EQUIPMENT GUIDE

    What's included. What you'll need.

    Know exactly what comes with your HF-16 PNP and what to prepare before the first flight.

    PNP / PLUG-N-PLAY Aircraft systems installed.

    The HF-16 arrives with its EDF power system, onboard control hardware, servos, retracts, brakes and lighting installed. Final assembly and setup are required.

    YOU PROVIDE Radio. Batteries. Charger.

    A compatible transmitter and receiver, flight and MFC batteries, and charging equipment are sold separately.

    01 / INCLUDED

    In the box.

    The airframe, factory-installed systems and assembly accessories.

    Factory-installed aircraft systems

    • 105mm HSD 11-blade S-EDF system
    • 4270 / 750KV brushless motor
    • Hobbywing 160A 12S ESC
    • HSD MFC-2085 integrated control system
    • Installed metal-gear servos
    • All-metal electric retractable landing gear
    • Electromagnetic wheel brakes
    • Integrated LED lighting system

    Airframe & supplied accessories

    • HSD HF-16 airframe
    • Scale missiles and exterior accessories
    • Carbon wing tube
    • Assembly hardware
    • Decal / sticker sheet
    • Aircraft instruction manual
    02 / SOLD SEPARATELY

    Required to fly.

    These items are not included in the PNP package.

    Transmitter
    6-channel or higher compatible radio system.
    Receiver
    Compatible full-range receiver; confirm protocol compatibility with the installed MFC-2085.
    Main flight batteries
    2 × 6S 22.2V 5000–6000mAh LiPo batteries for 12S operation.
    MFC system battery
    Separate 2S 7.4V 1800–2000mAh LiPo battery.
    Battery charger
    LiPo balance charger capable of charging both 6S and 2S batteries.
    Battery connection
    AS150-compatible connectors or an appropriate adapter for the battery installation.
    Before connecting power

    Verify connector compatibility, battery fit, wiring and polarity. Complete assembly, radio programming and preflight checks before operation.

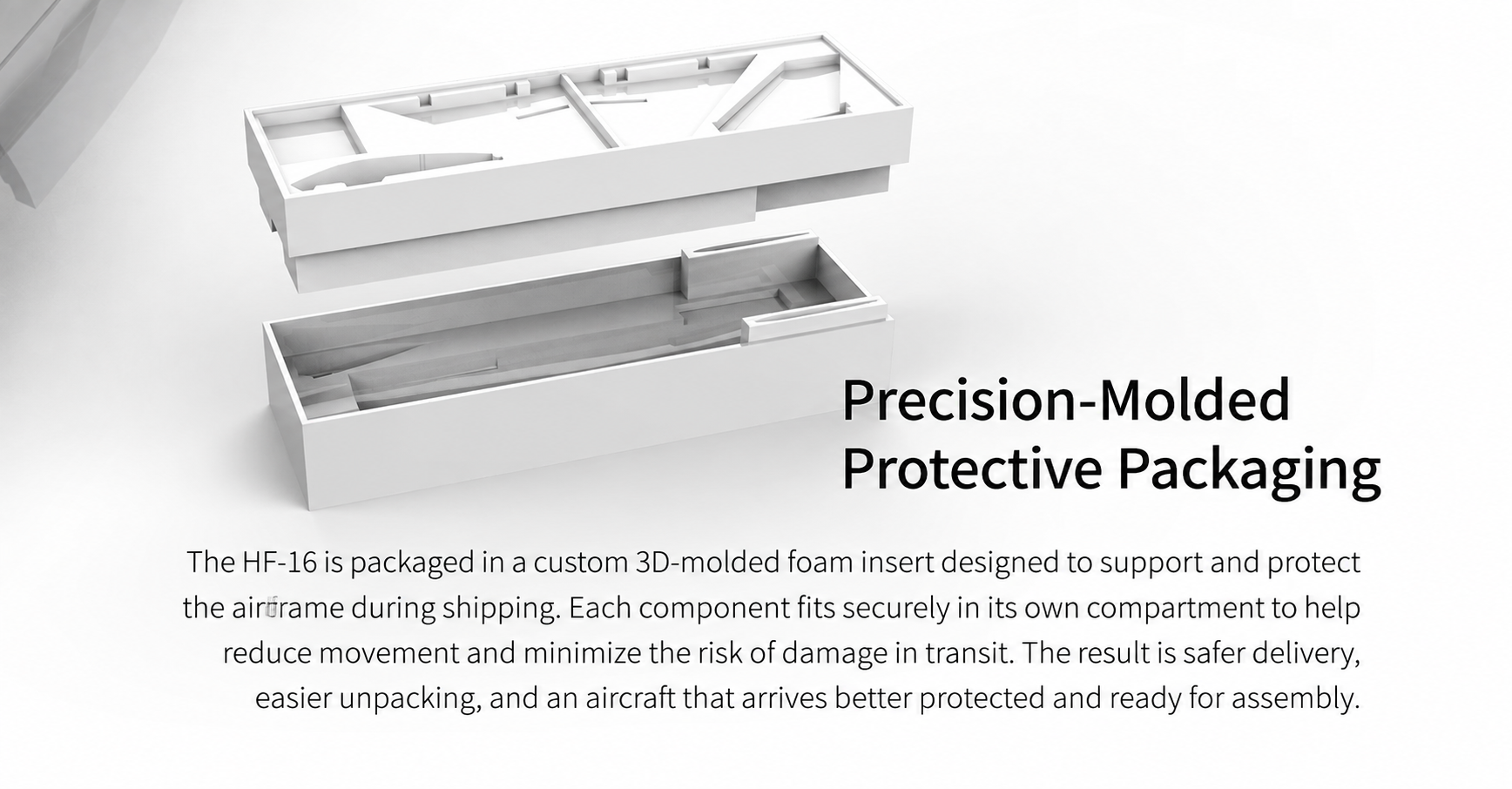

    HSD HF-16 Dream Viper packaging and supplied aircraft components
    PACKAGE REFERENCE

    See what arrives.

    View the supplied packaging image alongside the checklist above. Use the Included and Required lists for the full equipment breakdown.

    View larger image
    PLAN YOUR FLIGHT

    Before you buy.

    01 / CONFIGURATION

    PNP means final setup.

    Propulsion and onboard systems come installed. The radio system, batteries and charger are separate purchases; final assembly and setup remain necessary.

    02 / RUNWAY

    Choose the right surface.

    A smooth paved or hard runway is recommended. This aircraft is not recommended for grass operation.

    03 / EXPERIENCE

    Built for advanced pilots.

    The HF-16 is intended for experienced RC pilots with high-performance EDF experience. It is not recommended as a first EDF aircraft.

    HF-16 DREAM VIPER VIDEO

    See the HF-16 in action.

    Take a closer look at the HF-16 Dream Viper.

    HSD PILOT RESOURCES HF-16 V3

    Everything you need to prepare for flight.

    Aircraft documentation and setup resources for the HSD HF-16 V3 105mm S-EDF, applicable across available liveries.

    01 / OFFICIAL AIRCRAFT MANUAL
    Assembly & pre-flight documentation

    HF-16 V3
    Assembly & Pre-Flight Manual

    Review assembly procedures, integrated control-system guidance, radio and control checks, landing-gear operation, center-of-gravity setup, and final pre-flight inspection.

    View manual Download PDF

    English • HF-16 V3 aircraft family • All liveries

    Inside the manual
    • Airframe assembly
    • Radio & control checks
    • Landing gear & braking
    • Center of gravity & pre-flight
    02 / PILOT RESOURCES

    More resources are on the way.

    Additional files will be linked here when released and verified.

    FrSky ETHOS model files

    Aircraft-specific transmitter programming and setup resources.

    Coming soon

    Quick-start & pre-flight checklist

    A separate field-friendly checklist for setup and departure checks.

    Coming soon

    MFC-2085 reference guide

    Control-system documentation and connection reference material.

    Coming soon
