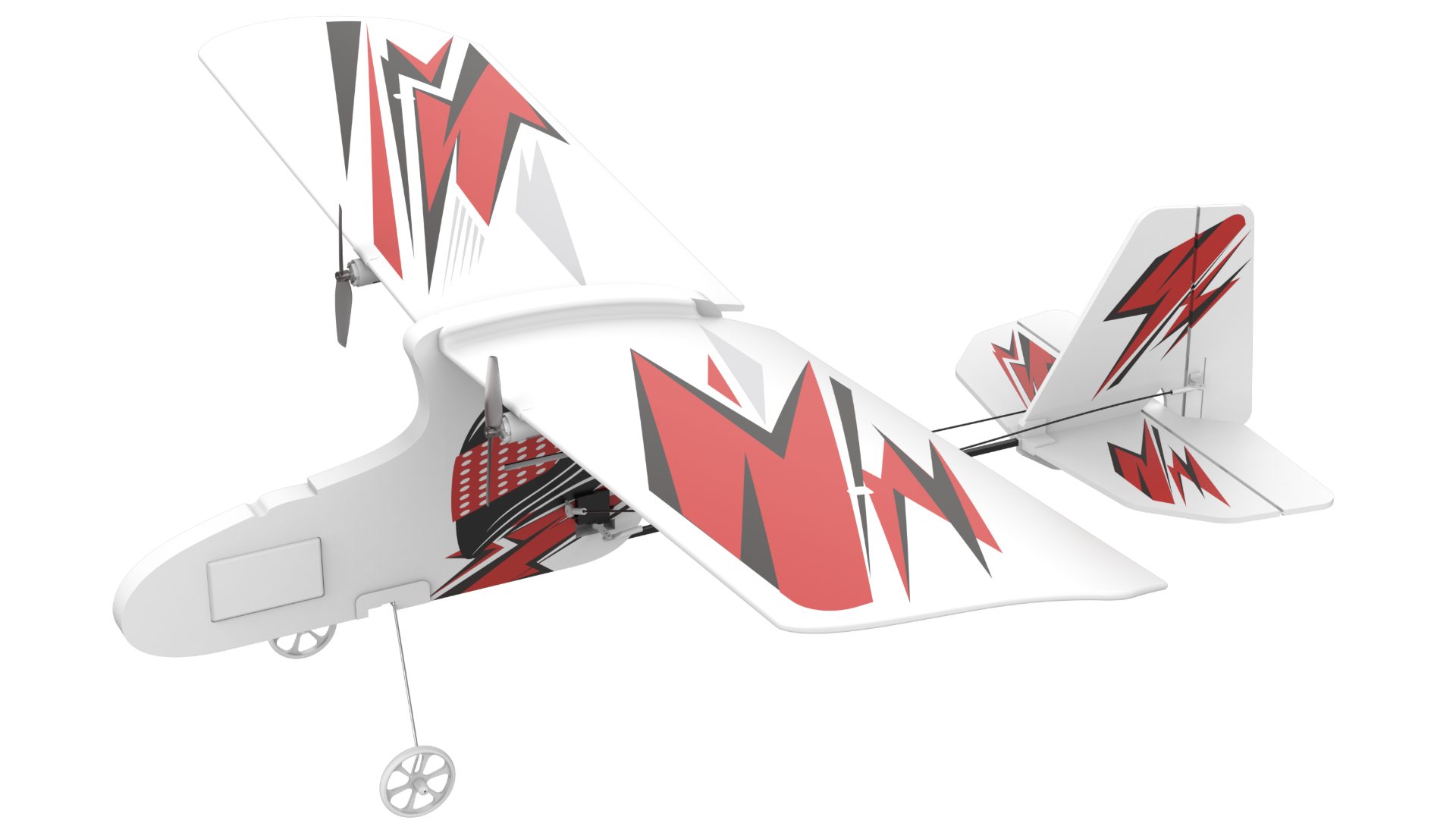

HSD Skylark RC Airplane - Red

Name: HSD Skylark RC Airplane - Red
SKU: SKYLARK-AIR-001-RED
Availability: InStock

Start learning RC flight with the HSD Jr. HX-10 Skylark. This 700 mm EPP airplane combines twin-motor power and built-in gyro stabilization with an included 2.4 GHz transmitter, 1150 mAh 1S LiPo battery, and USB charger. Assembly, four AAA transmitter batteries, and additional setup supplies are required. Recommended for ages 14+.

SKU: SKYLARK-AIR-001-RED

$0.00

Qty:

i h

Overview
Specifications
Included and Required
Videos
Downloads

HSD JR. / HX-10 SKYLARK

Your first flight starts here.
A whole new adventure awaits.

Discover the fun of RC flight with the HSD Jr. Skylark. A lightweight EPP airframe, twin-motor power, and built-in gyro stabilization give new pilots a practical place to start learning.

HX-10 SKYLARK • RTF • AGES 14+

LEARN. FLY. GROW.

700mm Compact wingspan

Twin Coreless motor power

Gyro Built-in stabilization

RTF Radio and flight battery included

THE SKYLARK EXPERIENCE

Small airplane.
Big possibilities.

Learn the controls, prepare your aircraft, and build your skills one flight at a time. The Skylark combines a compact airframe with an included 4-channel transmitter, flight battery, and USB charger. Assembly and additional setup supplies are required.

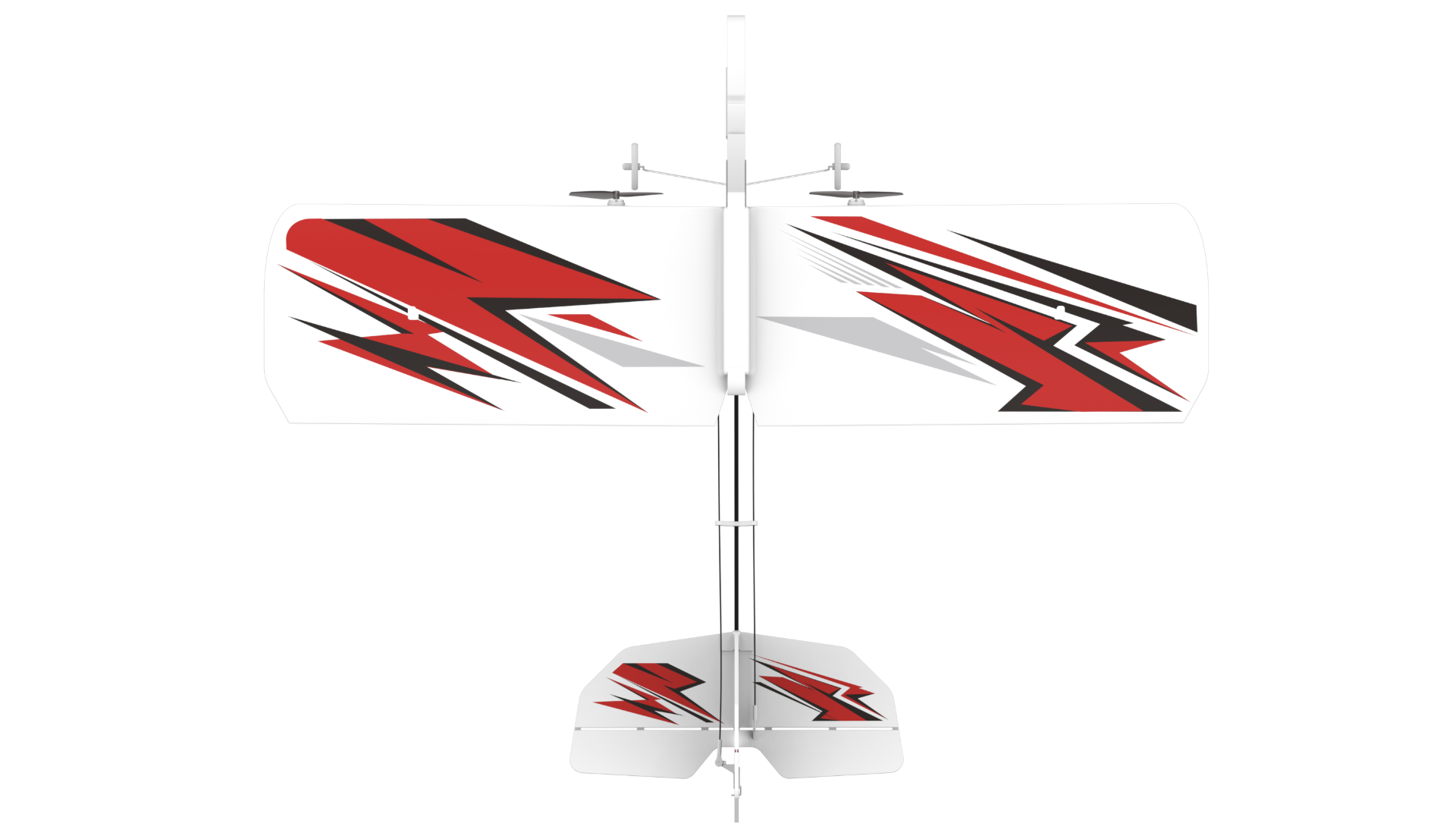

01 / TWIN-MOTOR POWER

Two motors.
One fun little airplane.

Two 1020 coreless motors drive counter-rotating propellers. Differential motor speed works alongside the rudder to help the Skylark turn, while its 700 mm wingspan keeps the aircraft compact and easy to carry.

Dual coreless motors Counter-rotating propellers 700 mm wingspan

02 / FLIGHT CONTROLS

Learn the controls.
Build your confidence.

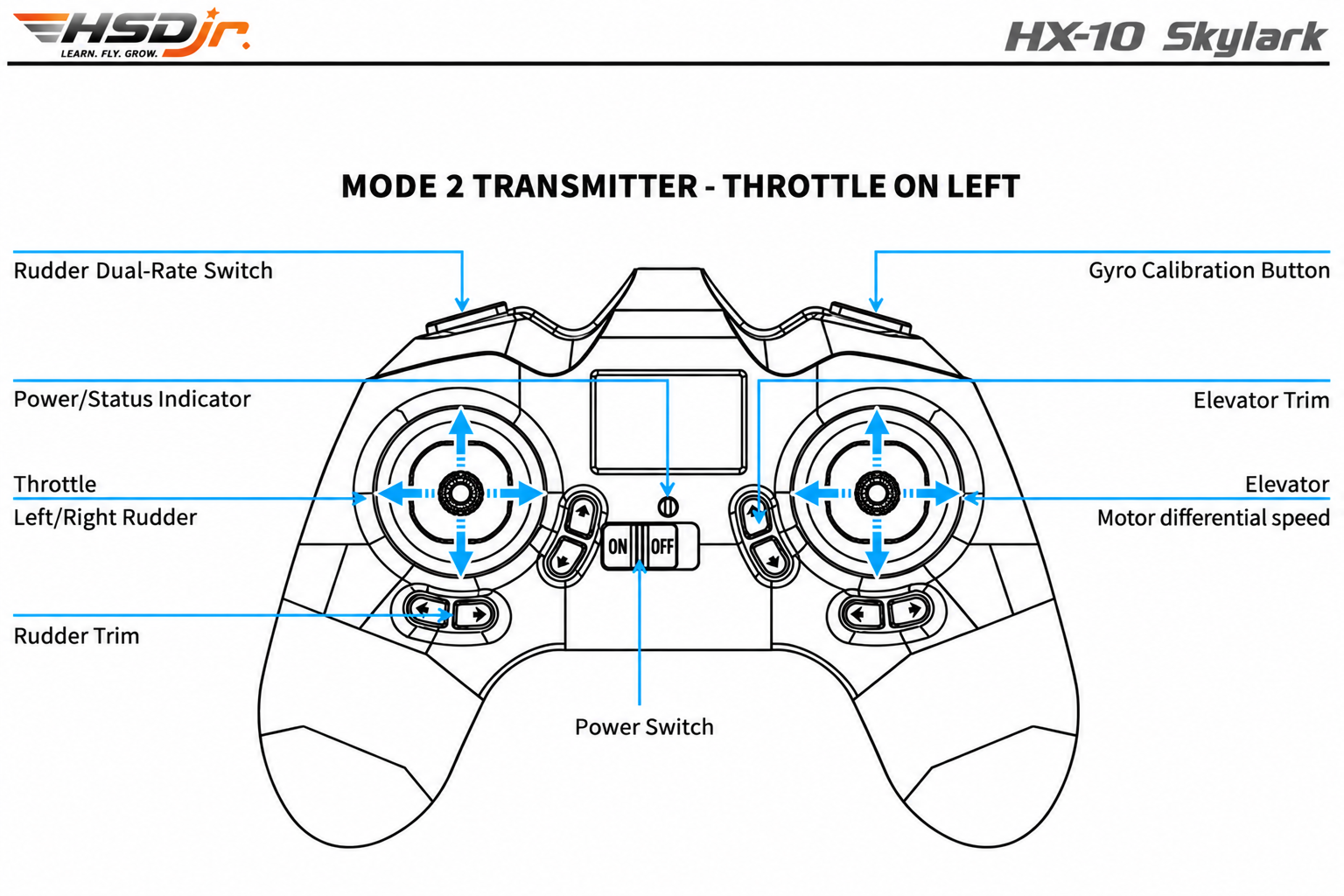

The included 2.4 GHz 4-channel transmitter operates the Skylark's flight controls, including throttle, elevator, rudder, and differential motor control. Built-in gyro stabilization helps oppose unwanted movement, while rudder dual rates and trim controls let you adjust the response.

Follow the quick-start guide for gyro calibration and preflight control checks.

2.4 GHz radio 4-channel transmitter Gyro stabilized

03 / AIRFRAME & ASSEMBLY

A little assembly.
A lot to look forward to.

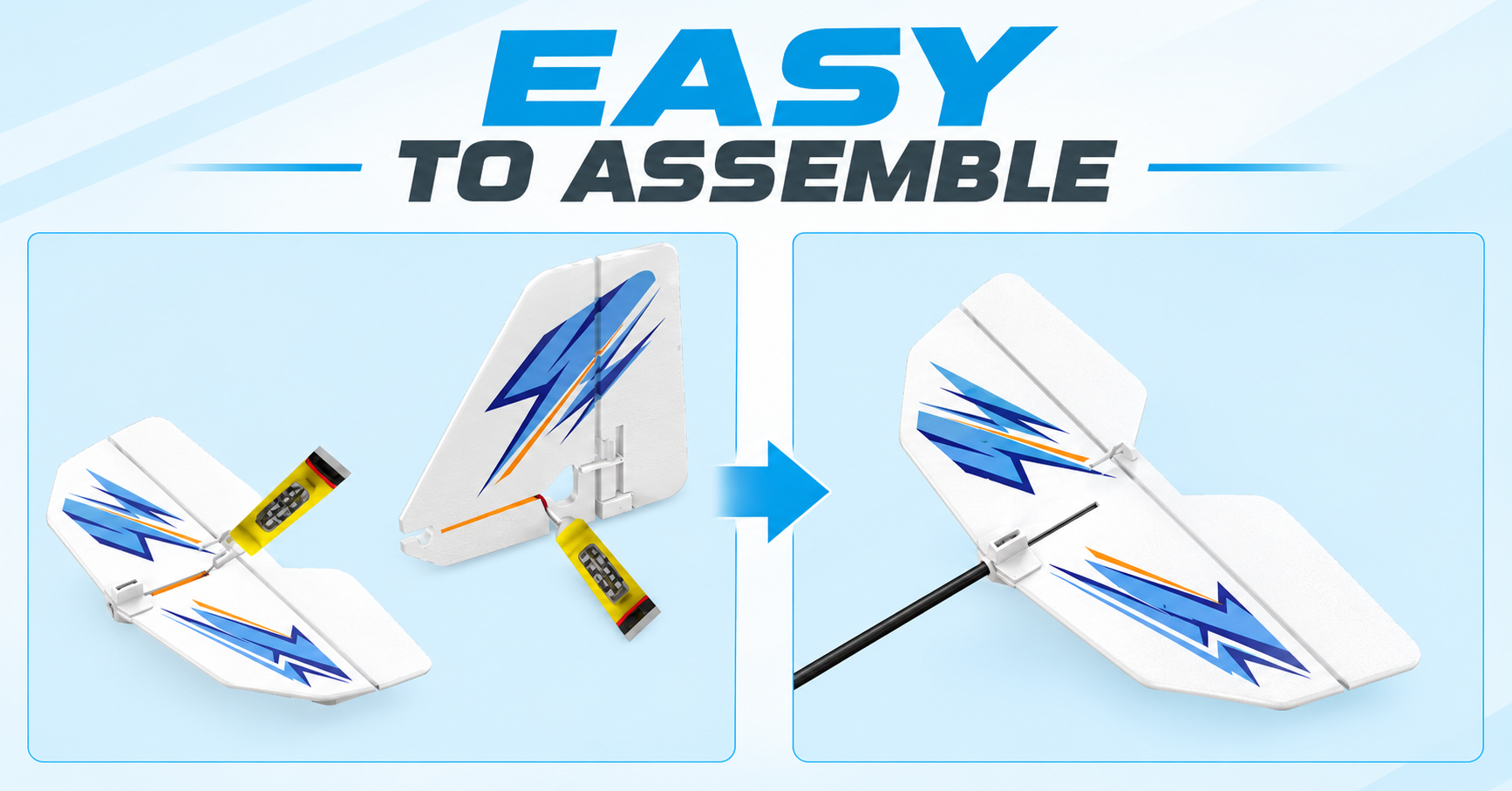

Install the wing, struts, tail surfaces, and landing gear using the quick-start instructions. The airframe combines lightweight EPP foam with polypropylene (PP) board and ABS plastic components, finished with screen-printed graphics and stickers.

Plan for approximately 30 minutes of assembly time. Allow additional time for adhesive to fully cure before flying.

EPP, PP & ABS construction Screen-printed graphics & stickers Fixed wire landing gear

HX-10 SKYLARK TECHNICAL REFERENCE

Aircraft Specifications

Key dimensions, power system, flight controls, and setup information for the HSD Jr. Skylark RTF.

700 mm Wingspan

598 mm Length

130 g Flying weight with battery

1S 1150 mAh LiPo included

01 / TECHNICAL DATA

Airframe & dimensions

Aircraft	HSD Jr. HX-10 Skylark
Configuration	RTF (Ready-to-Fly); assembly required
Wingspan	700 mm / 27.6 in
Overall length	598 mm / 23.5 in
Flying weight	130 g / 4.6 oz with included battery
Airframe construction	EPP foam, polypropylene (PP) board, and ABS engineering plastic
Wing area	11 dm²
Wing loading	11.8 g/dm²
Finish	Screen-printed graphics and stickers

02 / TECHNICAL DATA

Propulsion & electrical power

Motors	Dual 1020 coreless motors with opposite rotation
Motor speed rating	42,000 RPM (manufacturer specification)
Propellers	Counter-rotating, 65 mm diameter
Propeller shaft diameter	1.2 mm
Flight battery	1150 mAh, 3.7 V, 1S, 25C LiPo; included
Charger	USB charger; included

03 / TECHNICAL DATA

Radio & flight controls

Transmitter	2.4 GHz, 4-channel; included
Flight controller	Integrated receiver, ESC, and flight controller
Gyro stabilization	Built-in, with transmitter calibration function
Installed servos	Two 2.5 g plastic-gear servos
Control surfaces	Rudder and elevator; no physical ailerons
Differential thrust	Turning control through differential motor speed
Transmitter batteries	Four AAA batteries; sold separately

04 / TECHNICAL DATA

Flight & setup

Pilot skill level	Beginner
Recommended age	14+
Flight time	Approximately 8–10 minutes
Control range	Up to 150 m / 490 ft
Maximum flight speed	Approximately 60 km/h / 37 mph
Landing gear	Fixed steel-wire landing gear
Assembly time	Approximately 30 minutes, plus adhesive curing time
Operating temperature	0–40°C / 32–104°F

HX-10 SKYLARK RTF EQUIPMENT GUIDE

What's included. What you'll need.

See what comes with your Skylark and what to prepare before your first flight.

RTF / READY-TO-FLY PACKAGE Aircraft. Radio. Flight battery.

The Skylark package includes the aircraft components, 4-channel transmitter, flight battery, USB charger, and assembly accessories. Final assembly and preflight setup are required.

YOU PROVIDE A few setup essentials.

Prepare four AAA transmitter batteries, a suitable USB power source, and a small Phillips screwdriver.

01 / INCLUDED

In the box.

The aircraft, radio equipment, and assembly accessories.

Aircraft & installed systems

Skylark fuselage with installed receiver, flight controller, and two 2.5 g plastic-gear servos
Wing assembly with twin 1020 coreless motors and counter-rotating propellers
Horizontal and vertical stabilizers
Wing struts
Main landing gear and tail wheel

Radio, battery & accessories

2.4 GHz 4-channel transmitter
1150 mAh 3.7 V 1S 25C LiPo flight battery
USB charger
Assembly hardware and reinforcement pieces
Spare propellers
Assembly and linkage adhesive

02 / ADDITIONAL SUPPLIES

Required to fly.

Have these items ready before completing setup.

Transmitter batteries: Four AAA batteries; sold separately.
USB power source: A suitable USB power source for the included flight-battery charger.
Assembly tool: A small Phillips screwdriver for the supplied hardware.

Before your first flight

Plan for approximately 30 minutes of assembly, plus adhesive curing time. Charge the flight battery and complete gyro calibration and preflight control checks before flying.

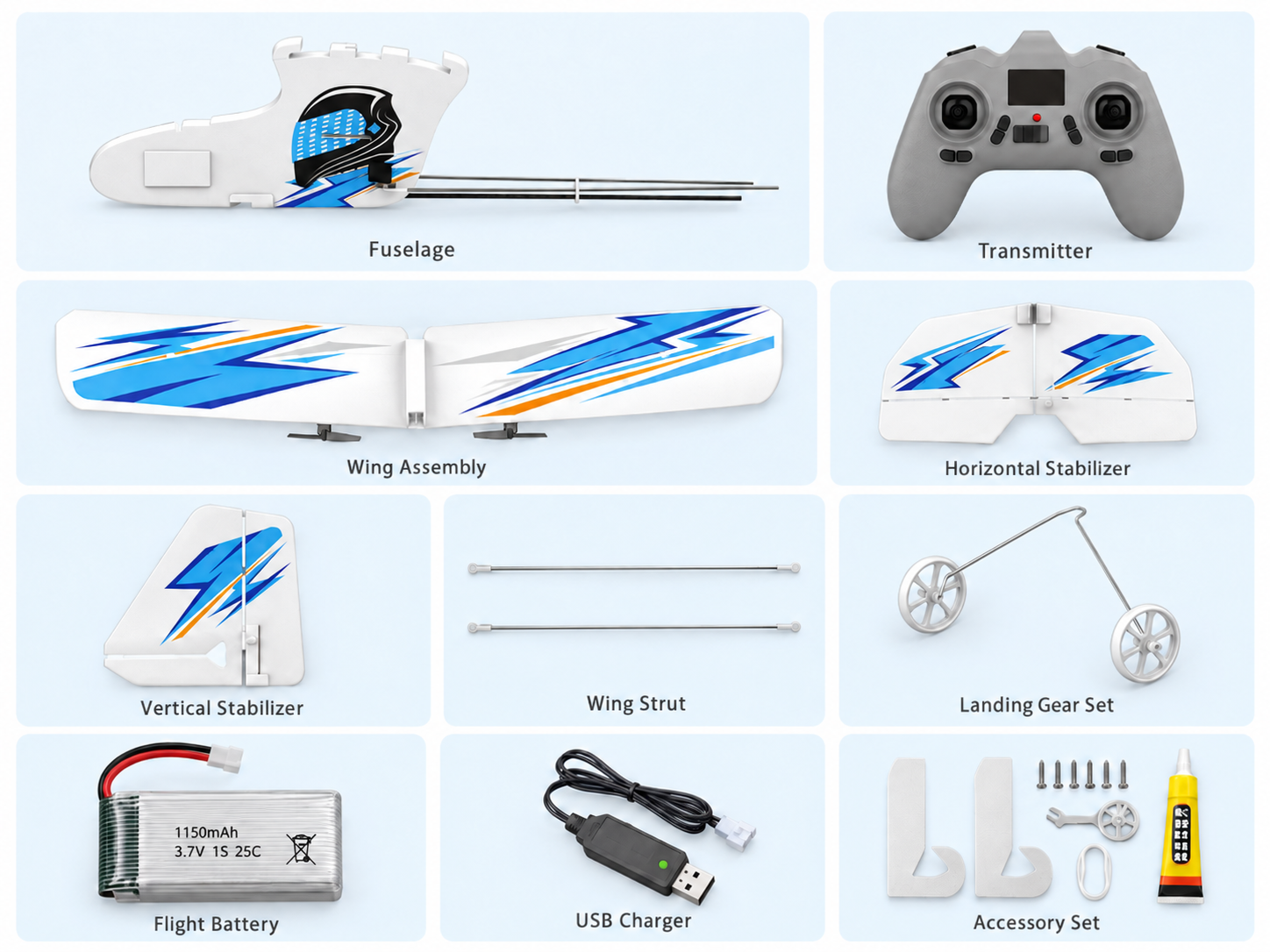

PACKAGE REFERENCE

See what arrives.

Use the package image alongside the checklist above to identify your aircraft components and supplied accessories before assembly.

View larger image

LEARN. FLY. GROW.

Before your first flight.

01 / ASSEMBLY

Take time to prepare.

Allow approximately 30 minutes for assembly. Follow the quick-start guide for use of the supplied adhesives and allow them to reach their full specified curing time before flying.

02 / CONTROLS

Check before takeoff.

Verify transmitter operation, control directions, and gyro response using the manual's setup and preflight instructions.

03 / FIRST FLIGHTS

Start with guidance.

Choose a clear, open flying area. New pilots should seek experienced guidance for their first flights. Recommended for ages 14+.

HX-10 SKYLARK VIDEO

See the Skylark in action.

Take a closer look at the HSD Jr. HX-10 Skylark.

HSD JR. PILOT RESOURCES HX-10 SKYLARK

Everything you need to prepare for flight.

Aircraft assembly instructions and setup guidance for the HSD Jr. HX-10 Skylark.

01 / OFFICIAL QUICK START GUIDE

Assembly & first-flight preparation

HX-10 Skylark
Quick Start Guide

Review airframe assembly, transmitter functions, gyro calibration, binding, control adjustments, and preflight checks before operating your aircraft.

View manual Download PDF

English & Chinese • HX-10 Skylark • PDF document

Inside the guide

Airframe assembly
Transmitter controls
Gyro calibration
Binding & preflight

HSD Skylark RC Airplane - Red

Your first flight starts here.A whole new adventure awaits.

Small airplane.Big possibilities.

Two motors.One fun little airplane.

Learn the controls.Build your confidence.

A little assembly.A lot to look forward to.

Start your flying story with HSD Jr.
